What is Bitumen membrane waterproofing ?

Water damage can wreak havoc on your property, causing structural issues, health concerns, and expensive repairs. Whether you’re constructing a new building or renovating an existing one, one of the most effective methods to protect it from water intrusion is bitumen membrane waterproofing. In this blog, we’ll explore what bitumen membrane waterproofing is, its benefits, and why it might be the ideal choice for your construction project.

Understanding Bitumen Membrane Waterproofing

Bitumen membrane waterproofing is a time-tested method for creating a waterproof barrier in various construction applications. At its core is bitumen, a viscous, petroleum-derived substance known for its waterproofing properties. This bitumen is often reinforced with materials like fiberglass or polyester to enhance strength and durability.

Bitumen membrane waterproofing is a popular method of providing a durable and effective waterproofing barrier for various structures. It involves the application of bitumen-based membranes or sheets to create a continuous, waterproof layer. Here’s an overview of bitumen membrane waterproofing:

  1. Types of Bitumen Membranes: Bitumen membranes are available in different types, each with specific characteristics and application methods:
    • SBS (Styrene-Butadiene-Styrene) Modified Bitumen Membrane: SBS-modified bitumen membranes are manufactured by blending bitumen with elastomeric polymers, such as styrene-butadiene-styrene. These membranes offer excellent flexibility, elongation, and crack resistance, making them suitable for areas with temperature variations and structural movements.
    • APP (Atactic Polypropylene) Modified Bitumen Membrane: APP-modified bitumen membranes are produced by blending bitumen with atactic polypropylene. These membranes provide enhanced heat resistance, making them suitable for hot climate regions. They offer good tensile strength and elasticity.
    • Self-Adhesive Bitumen Membrane: Self-adhesive bitumen membranes feature a sticky backing that allows for easy installation. They eliminate the need for torching or applying adhesives. Self-adhesive membranes are commonly used for smaller-scale waterproofing applications, such as balconies or terraces.
  2. Surface Preparation: Proper surface preparation is crucial for successful bitumen membrane installation. The surface should be clean, free of debris, dust, or loose materials. Any cracks or voids should be repaired, and the surface should be smooth and even.
  3. Membrane Application: Bitumen membranes are typically supplied in rolls or sheets. The application process may involve the following steps:
    • Torch-Applied Method: In this method, the bitumen membrane is unrolled and positioned onto the prepared surface. A propane torch is then used to heat the membrane’s underside, which activates the adhesive backing. The heated membrane is then pressed onto the surface, ensuring good adhesion.
    • Cold-Applied Method: Some bitumen membranes are self-adhesive and can be directly applied to the prepared surface without the need for torching. These membranes have a protective film on the adhesive side, which is peeled off during installation. The membrane is carefully positioned and pressed onto the surface, ensuring proper adhesion.
  4. Overlapping and Sealing: Adjacent sheets of bitumen membrane should be overlapped to create a continuous, watertight seal. The specific overlap requirements may vary depending on the manufacturer’s instructions and the project’s specifications. Additionally, the seams or joints between the membranes should be sealed using bitumen-based sealants or tapes to prevent water infiltration.
  5. Protection Layer: Depending on the application, a protection layer may be applied over the bitumen membrane to provide additional protection against mechanical damage, UV radiation, or weathering. This layer can be in the form of insulation boards, geotextiles, or additional layers of bitumen membranes.

Maintenance: Regular inspections and maintenance are necessary to ensure the long-term performance of bitumen membrane waterproofing systems. Any damages or punctures should be repaired promptly to prevent water penetration.

bitumen membrane waterproofing

Why Bitumen membrane waterproofing is one of the best waterproofing services?

Bitumen membrane waterproofing is considered one of the best waterproofing services for several reasons:

  1. Excellent Waterproofing Properties: Bitumen membranes are highly effective in preventing water penetration. These membranes are made of a combination of bitumen, a sticky, viscous substance, and reinforcement materials such as polyester or fiberglass. This composition creates a durable, impermeable barrier against water, ensuring long-lasting waterproofing.
  2. Flexibility and Adaptability: Bitumen membranes are flexible and can easily conform to irregular surfaces, making them suitable for various applications. They can be used on flat or sloping roofs, foundations, basements, and other structures. The flexibility of these membranes allows for expansion and contraction due to temperature changes without compromising their waterproofing capabilities.
  3. Durability: Bitumen membranes are known for their durability and longevity. They can withstand harsh weather conditions, including extreme temperatures, UV radiation, and exposure to chemicals. This resilience ensures that the waterproofing system remains intact and effective for an extended period, reducing the need for frequent repairs or replacements.
  4. Easy Installation: Installing bitumen membrane waterproofing is relatively straightforward. The membranes are typically supplied in rolls, making them easy to handle and install. Depending on the specific product and application requirements, they can be torch-applied, self-adhesive, or mechanically fastened. The simplicity of installation saves time and labor costs, making it a preferred choice for waterproofing projects.
  5. Cost-Effectiveness: Bitumen membrane waterproofing offers a cost-effective solution compared to other methods. The materials used in bitumen membranes are often affordable, and the installation process is relatively quick. Moreover, the long lifespan of these membranes minimizes maintenance and repair expenses over time, making them a cost-efficient choice for waterproofing projects.
  6. Compatibility with Other Systems: Bitumen membranes can be easily integrated with other building systems. They can be combined with insulation materials, drainage systems, or protective layers to enhance the overall waterproofing performance. This compatibility allows for customization and ensures a comprehensive waterproofing solution tailored to specific project requirements.

While bitumen membrane waterproofing has many advantages, it’s important to note that the selection of an appropriate waterproofing method should consider factors such as the specific project needs, environmental conditions, local building codes, and expert recommendations.

Why is Bitumen membrane waterproofing so Important?

  1. Protection Against Water Damage: The primary purpose of waterproofing is to prevent water infiltration into a building’s structural components. Water can cause significant damage over time, including rotting wood, rusting metal, deteriorating concrete, and mold growth. Bitumen membrane waterproofing creates a reliable barrier that shields the structure from these potential issues.
  2. Preservation of Structural Integrity: Water damage can compromise the integrity of a building. When water seeps into foundations, walls, or roofs, it can weaken the structural components, leading to cracks, shifts, and even collapses in extreme cases. Bitumen membranes help maintain the strength and stability of a building by keeping water out.
  3. Prevention of Health Hazards: Moisture infiltration can create a breeding ground for mold, mildew, and other harmful microorganisms. These can lead to indoor air quality issues and health problems for occupants. Bitumen membrane waterproofing mitigates the risk of mold growth, promoting a healthier indoor environment.
  4. Extended Lifespan: Waterproofing systems, including bitumen membranes, extend the lifespan of building materials and components. By preventing water damage, these systems reduce the need for costly repairs and replacements, ultimately saving money over the long term.
  5. Energy Efficiency: Water infiltration can compromise the insulation properties of walls and roofs, leading to energy inefficiency. Bitumen membranes help maintain a building’s insulation, promoting energy efficiency and reducing heating and cooling costs.
  6. Enhanced Property Value: Proper waterproofing adds value to a property. Potential buyers and tenants are more likely to invest in or rent a building that has a proven waterproofing system in place. It’s a valuable selling point in the real estate market.
  7. Mitigation of Legal and Liability Issues: Water damage can lead to legal liabilities, especially in commercial properties or multi-unit housing. Owners and property managers have a duty to provide a safe and habitable environment. Failure to address water damage and its consequences can result in legal disputes. Bitumen membrane waterproofing helps avoid such issues.
  8. Versatility: Bitumen membrane waterproofing is versatile and suitable for various applications, including roofs, foundations, basements, tunnels, bridges, and more. Its adaptability to different structures makes it a go-to choice in construction.

Compliance with Building Codes: Many building codes and regulations require effective waterproofing in certain situations, such as below-grade construction. Bitumen membrane waterproofing helps ensure compliance with these codes, preventing potential legal and safety issues.

bitumen membrane waterproofing

What is the Procedure for Bitumen Membrane waterproofing?

Bitumen membrane can be applied using different methods depending on the specific product and application requirements. Here are three common methods of applying bitumen membrane:

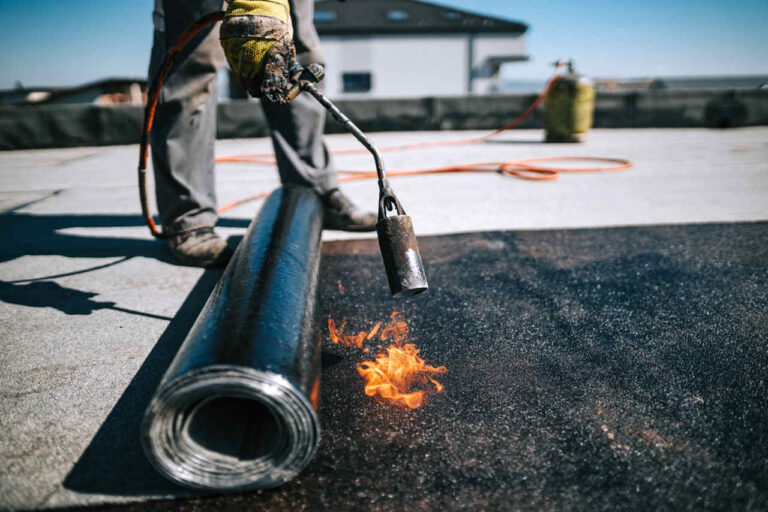

  1. Torch-Applied Method: This method involves using a propane torch to heat the bitumen membrane and adhere it to the substrate. Here are the general steps for torch-applied application:
    a. Surface Preparation: Ensure that the substrate is clean, dry, and free from any debris or loose material. Remove any sharp protrusions or irregularities from the surface.
    b. Priming (if required): Apply a suitable primer to enhance adhesion between the substrate and the bitumen membrane. The primer selection depends on the substrate type and the manufacturer’s recommendations.
    c. Roll Placement: Unroll the bitumen membrane onto the prepared surface, aligning it correctly. Overlap the adjacent rolls as per the manufacturer’s guidelines to ensure a watertight seal.
    d. Heating and Adhesion: Use a propane torch to heat the underside of the bitumen membrane as well as the substrate. Gradually move the torch over the membrane to melt the bitumen, allowing it to adhere to the substrate. Apply pressure with a roller to ensure proper bonding and eliminate air pockets or wrinkles.
    e. Sealing: Pay attention to critical areas such as corners, edges, and penetrations. Use additional heat and pressure to create secure seals and ensure waterproofing integrity.
  2. Self-Adhesive Method: Some bitumen membranes come with a self-adhesive backing, eliminating the need for heating equipment. Here’s an overview of the self-adhesive application process:
    a. Surface Preparation: Prepare the substrate by ensuring it is clean, dry, and free from dust, grease, or any loose material.
    b. Roll Placement: Unroll the bitumen membrane onto the prepared surface, aligning it correctly. Apply pressure with a roller to ensure proper adhesion and eliminate air pockets.
    c. Sealing: Pay attention to critical areas such as corners, edges, and penetrations. Use additional pressure to create secure seals and ensure water resistance.
  3. Mechanically Fastened Method: In this method, the bitumen membrane is secured to the substrate using mechanical fasteners such as screws or nails. Here’s a general outline of the mechanically fastened application:
    a. Surface Preparation: Prepare the substrate by ensuring it is clean, dry, and free from any debris or loose material.
    b. Roll Placement: Unroll the bitumen membrane onto the prepared surface, aligning it correctly. Secure the membrane using mechanical fasteners, following the manufacturer’s recommendations regarding spacing and placement.
    c. Sealing: Pay attention to critical areas such as corners, edges, and penetrations. Use additional bitumen-based sealants or adhesives to create secure seals and enhance waterproofing.

It’s important to note that the specific application method may vary depending on the manufacturer’s instructions, the type of bitumen membrane used, and the project requirements. It is recommended to refer to the product’s technical data sheets and follow the manufacturer’s guidelines for the proper application of the bitumen membrane. Additionally, it is advisable to consult with waterproofing professionals or contractors who have experience with bitumen membrane installation.



Advantages of Bitumen membrane waterproofing

Advantages of Bitumen Membrane waterproofing:

Bitumen membranes have several key features that make them a popular choice for waterproofing applications. Here are some of the main features of bitumen membrane:

  1. Water Resistance: Bitumen membranes are specifically designed to provide excellent water resistance. They form a seamless and durable barrier that prevents water penetration into the underlying structure, effectively waterproofing roofs, foundations, basements, and other surfaces.
  2. Flexibility: Bitumen membranes are highly flexible, allowing them to accommodate structural movement and adapt to various surface contours. This flexibility ensures that the membrane remains intact and functional even when subjected to temperature variations, settling of the building, or minor structural shifts.
  3. Durability: Bitumen membranes are known for their durability and ability to withstand challenging environmental conditions. They have high resistance to UV radiation, temperature extremes, and chemical exposure, making them suitable for long-term use in different climates.
  4. Tear Resistance: Bitumen membranes are typically reinforced with materials such as polyester or fiberglass, which enhance their strength and tear resistance. This reinforcement prevents the membrane from tearing or breaking when subjected to external forces, ensuring its integrity and long-lasting performance.
  5. Self-Healing Properties: Some bitumen membranes possess self-healing properties, meaning they can repair small punctures or tears over time. The bitumen material has the ability to flow and reseal minor damages, further enhancing the membrane’s overall effectiveness and longevity.
  6. Easy Installation: Bitumen membranes are relatively easy to install, which contributes to their popularity. They are typically supplied in rolls and can be applied using various methods such as torching, self-adhesion, or mechanical fastening. The straightforward installation process saves time and labor costs during construction or waterproofing projects.
  7. Compatibility: Bitumen membranes are compatible with other building systems and materials. They can be easily integrated with insulation, drainage systems, or protective layers to create a comprehensive waterproofing system tailored to specific project requirements.
  8. Cost-Effective: Bitumen membranes offer a cost-effective waterproofing solution. The materials used in these membranes are often affordable, and their durability reduces the need for frequent repairs or replacements, resulting in long-term cost savings.

It’s important to note that the specific features and performance of bitumen membranes may vary depending on the product manufacturer, formulation, and application method. Consulting with waterproofing experts or manufacturers can provide detailed information on the specific features of a particular bitumen membrane product.

The best type of bitumen for waterproofing largely depends on the specific requirements of the project, including climate, substrate type, and intended longevity. However, two common types of bitumen are widely used for waterproofing applications: oxidized bitumen and modified bitumen. Here’s a breakdown of each:

1. Oxidized Bitumen

Oxidized bitumen, also known as blown bitumen, is produced by passing air through bitumen at elevated temperatures, which results in a more viscous and less temperature-susceptible product. This type of bitumen is harder and more brittle compared to other types and has a higher melting point, making it suitable for applications where a stiffer, more durable material is necessary. It’s often used in roofing, flooring, and some types of waterproof membrane applications.

2. Modified Bitumen

Modified bitumen includes enhancements with polymers such as atactic polypropylene (APP) or styrene-butadiene-styrene (SBS), which improve the bitumen’s properties.

  • APP Modified Bitumen: This type is enhanced with plastic polymers and is typically applied using a torch (torch-down application). It is known for its durability and high-temperature performance, making it suitable for hot climates.

  • SBS Modified Bitumen: This form is enhanced with rubber polymers, making it more elastic and flexible at lower temperatures. SBS-modified bitumen can be applied in multiple ways, including torch-down, cold adhesive, and self-adhering sheets. It’s particularly good in cold climates due to its flexibility, which helps resist cracking.

Choosing the Best Type

  • Climate Considerations: In colder climates, SBS is often preferred due to its flexibility and ability to handle thermal movements and contractions. In hotter climates, APP or oxidized bitumen might perform better due to their rigidity and higher melting points.

  • Application Method: Consider whether the bitumen can be easily applied with the available tools and techniques. For example, torch-applied systems might not be ideal in sensitive environments where open flames are a risk.

  • Environmental and Health Concerns: Modified bitumens, particularly those that are torch-applied, can release fumes that might be hazardous. Ventilation and safety measures are necessary.

  • Longevity and Maintenance: Depending on the expected life span of the waterproofing and the ease of maintenance, one type might be preferred over another. Modified bitumen membranes often come with a longer lifespan and less frequent maintenance needs.

Bitumen membrane waterproofing, while popular for its effectiveness and reliability, does have several disadvantages that should be considered when choosing a waterproofing method. Here are some of the key drawbacks:

1. Sensitivity to UV Radiation

Bitumen membranes can degrade when exposed to UV radiation over long periods. This exposure can lead to brittleness and cracking, reducing the membrane’s effectiveness and lifespan. Although some membranes are treated with materials like mineral granules to mitigate this effect, UV radiation remains a significant concern, especially in areas with high sun exposure.

2. Temperature Susceptibility

Bitumen membranes can soften in high temperatures and become brittle in cold temperatures. This temperature sensitivity can lead to various problems, such as:

  • Flowing or slumping in hot climates or during summer months.
  • Cracking in cold climates or during winter months. To address this, modifiers like APP (atactic polypropylene) and SBS (styrene-butadiene-styrene) are often added to enhance performance across temperature extremes.

3. Installation Challenges

The installation of bitumen membranes typically involves the use of open flames (torch-applied) or hot tar, which can be hazardous. This requires skilled labor and stringent safety measures to avoid burns, fires, and toxic fume inhalation. Additionally, incorrect installation can lead to failures in the waterproofing system.

4. Environmental Impact

Bitumen is a petroleum product, and its production and application can have environmental impacts. The process emits VOCs (Volatile Organic Compounds) and other pollutants, contributing to air pollution and potentially affecting the health of workers and nearby residents. Additionally, disposal of bitumen materials can be problematic due to their non-biodegradable nature.

5. Weight

Bitumen membranes are relatively heavy compared to other types of waterproofing materials like liquid-applied membranes or PVC sheets. The additional weight can be a concern in certain structures, requiring that the building’s design accommodates this load.

6. Maintenance and Repair

While bitumen membranes are generally durable, they do require periodic maintenance and can be susceptible to damage from foot traffic, mechanical impacts, or punctures. Repairs, though feasible, need to be carried out correctly to ensure the integrity of the waterproof barrier is maintained.

7. Aesthetic Limitations

Bitumen membranes generally do not offer much in terms of aesthetics. They are usually black and may not be suitable for visible areas where appearance is a concern. Though some types of bitumen membranes are available with colored finishes, options are still limited compared to other materials.

The thickness of bitumen membrane sheets can vary depending on the specific type and intended use. Generally, bitumen membranes used in waterproofing and roofing applications fall into a few standard thickness ranges:

  1. SBS Modified Bitumen Membranes: These sheets are typically available in thicknesses ranging from about 2 mm to 4 mm. The thicker membranes offer better durability and are more suitable for areas subject to high foot traffic or extreme weather conditions.

  2. APP Modified Bitumen Membranes: Like SBS membranes, APP membranes also usually range from 2 mm to 4 mm in thickness.

  3. Self-Adhesive Bitumen Membranes: These can vary widely but typically fall within the 1.5 mm to 4 mm range. The thickness often depends on the backing material and the specific use case.

  4. Torch-On Bitumen Membranes: These are generally found in thicknesses from about 3 mm to 5 mm. The extra thickness helps ensure durability and longevity under harsh conditions.

The choice of thickness should be based on factors such as the expected load, environmental conditions, and expected life span of the waterproofing system. Thicker membranes are typically more durable and resistant to mechanical damage, making them preferable for high-traffic areas or where the membrane may be exposed to sharp or heavy objects.

The lifespan of a bitumen membrane used for waterproofing or roofing largely depends on several factors including the type of bitumen used, the quality of installation, environmental conditions, and maintenance practices. However, under typical conditions, you can generally expect the following:

  1. SBS (Styrene-Butadiene-Styrene) Modified Bitumen Membrane: These membranes are known for their flexibility and toughness, which makes them particularly durable. They typically last between 15 to 30 years. The rubberized nature of SBS helps it withstand environmental factors like temperature fluctuations and physical stress better than some other types.

  2. APP (Atactic Polypropylene) Modified Bitumen Membrane: APP membranes are more rigid and less flexible than SBS but are highly resistant to UV radiation and high temperatures. These characteristics generally give APP membranes a lifespan of about 15 to 25 years.
