The Power of Guniting: A Simple Solution for Stronger Structures
Guniting, also known as shotcreting, is a highly effective method used in construction to apply concrete. Whether you’re working on a tunnel, retaining wall, or repairing an old structure, guniting is a game-changer. But what exactly is it, and why is it so popular?

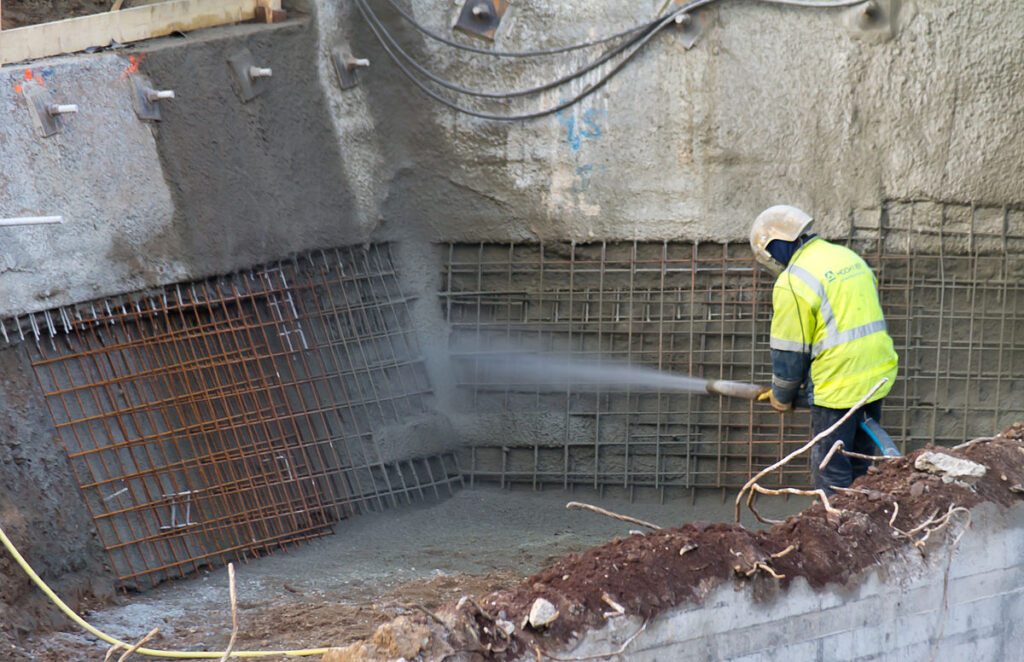

Guniting is the process of spraying a mixture of concrete or mortar at high speed onto a surface. This method uses compressed air to propel the material, allowing it to bond tightly and form a durable layer. The result is a smooth, strong finish that’s resistant to wear and tear.
Why Choose Guniting?
Here are a few reasons why guniting is widely used in construction projects:
Strength and Durability: Guniting produces a solid, long-lasting surface, making it ideal for areas exposed to harsh conditions, like tunnels, swimming pools, and retaining walls.
Quick Application: With the power of high-speed spraying, large surfaces can be covered quickly, saving both time and effort.
Versatility: Guniting can be used for new construction or repair work. Whether you’re reinforcing a deteriorating structure or creating a new one, it adapts to various needs.
Cost-Effective: Guniting reduces material waste, ensuring a more efficient use of concrete. This makes it an affordable solution for many projects.
How Does Guniting Work?
The guniting process starts with a mix of dry cement and aggregates, which are combined in a special machine. This mixture is then propelled through a nozzle using compressed air. As the mixture hits the surface, water is added to form the concrete, allowing it to stick and harden.
The spraying method ensures even coverage and makes it possible to work in hard-to-reach areas that would be difficult to cover with traditional concrete pouring.
Common Uses of Guniting
- Tunnels: Guniting is perfect for lining tunnels, providing a strong, supportive surface.
- Retaining Walls: It offers extra strength to retaining walls, preventing erosion and collapse.
- Swimming Pools: Guniting helps create the smooth, durable surfaces required for swimming pools.
- Repairs: When a structure starts to crack or wear out, guniting can restore its strength and integrity.
Guniting is the process of applying concrete or mortar through a high-pressure spray. This technique uses compressed air to shoot the concrete onto a surface, making it bond strongly and form a durable, solid layer. It is commonly used in construction for creating or repairing structures like tunnels, retaining walls, and swimming pools. Guniting is known for its efficiency, strength, and ability to cover large or hard-to-reach areas quickly.
Guniting and grouting are both construction techniques but are used for different purposes and processes.
Guniting:
- Process: Guniting is the application of concrete or mortar by spraying it at high pressure onto surfaces using compressed air. This method is often used to cover large areas quickly and to create strong, durable surfaces.
- Uses: Guniting is typically used in building tunnels, swimming pools, retaining walls, and for repairing deteriorating structures. It creates a thick, solid layer of concrete that can reinforce or repair surfaces.
- Purpose: It’s mainly used to form a protective or structural layer.
Grouting:
- Process: Grouting involves filling gaps, cracks, or cavities with a fluid mixture (grout) made of cement, sand, water, or chemicals. This mixture is injected into voids or spaces to strengthen, stabilize, or seal structures.
- Uses: Grouting is used to fill cracks in concrete, reinforce foundations, stabilize soil, or prevent water leakage. It’s often applied in areas where structural integrity or water resistance is needed.
- Purpose: It’s primarily used for sealing or reinforcing spaces.
Key Difference:
- Guniting is about applying concrete to form a surface, while grouting is focused on filling voids or cracks to enhance strength and stability.
Guniting offers several advantages in construction due to its efficiency, durability, and versatility. Here are the key benefits:
1. Strong and Durable Surfaces
Guniting creates dense, high-strength concrete surfaces that are highly resistant to wear, weathering, and damage. This makes it ideal for structures exposed to harsh conditions like tunnels, bridges, and retaining walls.
2. Quick and Efficient Application
With high-pressure spraying, large areas can be covered quickly, reducing construction time. This makes it an efficient solution for projects that need to be completed in a shorter timeframe.
3. Versatility
Guniting can be used for a wide range of applications, including new construction, repair work, and reinforcement. It adapts to complex shapes and hard-to-reach areas, such as curved surfaces or areas with restricted access.
4. Reduced Material Waste
The controlled spraying process minimizes material wastage, making it a more economical option compared to traditional concrete pouring.
5. Minimal Formwork Required
Unlike traditional concrete pouring, which often requires extensive formwork to shape the material, guniting can be applied directly to surfaces without complex molds or supports, reducing labor and material costs.
6. Excellent Adhesion
The high-pressure application ensures that the concrete bonds tightly to the surface, resulting in superior adhesion and a solid structural finish.
7. Ideal for Repairs and Reinforcements
Guniting is often used to repair deteriorated structures or reinforce existing ones, as it can easily be applied over damaged surfaces to restore their strength.
8. Improved Water Resistance
Guniting can be used to create water-resistant barriers in structures like swimming pools, tanks, and water-retaining walls, offering excellent protection against water seepage.
9. Cost-Effective
Due to reduced labor, material, and time requirements, guniting is often a more cost-effective solution for both small and large construction projects.
The Gunite method is a construction technique where a mixture of dry cement and sand is pneumatically conveyed through a hose and then sprayed at high velocity onto a surface. Water is added to the dry mix at the nozzle during the spraying process to create concrete or mortar. This method is also known as “dry-mix shotcrete.”
How the Gunite Method Works:
Dry Mix Preparation: The dry ingredients (usually cement and sand) are mixed without water and placed in a special machine called a gunite machine.
Compressed Air Propulsion: The dry mix is pushed through a hose using compressed air. As the material reaches the nozzle, water is added to create the concrete mix.
High-Pressure Spraying: The mix is sprayed at high speed onto the target surface. The high velocity ensures that the material adheres well and compacts tightly, forming a strong, dense layer.
Uses of the Gunite Method:
- Tunnels and Underground Structures: For lining and reinforcing tunnel walls.
- Swimming Pools: To form the pool shell, ensuring it is strong and water-resistant.
- Retaining Walls: To provide structural strength and prevent erosion.
- Slope Stabilization: Helps reinforce and stabilize slopes or cliffs.
- Repair Work: Ideal for repairing damaged or deteriorating concrete structures.
Advantages of the Gunite Method:
- Strong Adhesion: The high-pressure application allows the material to bond tightly to the surface.
- Versatility: Can be applied to a wide range of shapes and sizes, including curved or irregular surfaces.
- Minimal Formwork: Since it can be sprayed directly onto surfaces, it requires little to no formwork, reducing costs and labor.
- Quick Application: It allows for rapid application over large areas.
The Gunite method is popular for both new construction and repair projects due to its strength, efficiency, and flexibility.
The materials used in guniting (dry-mix shotcrete) are specifically chosen for their strength, bonding properties, and durability. Here’s a breakdown of the key materials:
1. Cement
- Purpose: Acts as the primary binding agent in the mix.
- Type: Ordinary Portland Cement (OPC) is commonly used, though other types of cement may be used depending on the project’s requirements (e.g., sulfate-resistant cement for projects in harsh chemical environments).
2. Sand
- Purpose: Serves as the fine aggregate in the mix, giving the mortar or concrete its body and bulk.
- Specification: The sand used should be clean, dry, and free of impurities to ensure a smooth application and strong adhesion. Fine, well-graded sand is preferred to enhance the compaction and surface finish.
3. Water
- Purpose: Hydrates the cement and helps bind the dry mix into concrete. It is added at the nozzle during the spraying process.
- Specification: Water should be clean and free of impurities like oils, salts, or chemicals that could affect the concrete’s setting and durability.
4. Aggregates (Optional)
- Purpose: In some cases, small-sized coarse aggregates (up to 10 mm) are added to the mix to increase strength, especially when creating thicker layers.
- Specification: The aggregates must be clean, dry, and properly graded for smooth and consistent spraying.
5. Accelerators (Optional)
- Purpose: Chemical additives like accelerators can be added to speed up the setting time, particularly useful in projects where quick curing is needed, such as repairs or emergency work.
- Example: Calcium chloride is a commonly used accelerator.
6. Admixtures (Optional)
- Purpose: Used to modify specific properties of the mix, such as improving workability, reducing water content, or enhancing adhesion.
- Types:
- Plasticizers: Improve workability and ease of application.
- Waterproofing agents: Enhance the water resistance of the concrete, especially for structures like pools or retaining walls.
- Fibers: Sometimes fibers (e.g., polypropylene or steel fibers) are added to increase tensile strength and reduce cracking.
7. Reinforcement (Optional)
- Purpose: Steel bars or wire mesh may be embedded within the guniting layer to provide additional structural reinforcement, particularly in projects that require extra strength, such as retaining walls or load-bearing structures.
These materials, combined with the guniting process, create a high-strength, durable concrete layer suitable for a variety of construction and repair applications.
